HDG Pipe Rack Structure Light Gauge Steel Frame Construction ODM
| MOQ: | 20T |
| Price: | USD100-800 |
| Standard Packaging: | STEEL PALLET |
| Delivery Period: | 5-8 WEEKS |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 15000TONS PER MONTH |
Detail Information
Place of Origin
China
Brand Name
Wenchen
Certification
ISO, CE
Finish:
Hot-dip Galvanized
Standard:
GB, CE, AISC, JIS, CWB
Columns And Beam:
H Section Column&Beam
Weather Resistance:
Yes
Production Capacity:
12500T Per Month
Customization Options:
Available
Structure Type:
Modular Pipe Rack
Color:
Optional
Highlight:
HDG Pipe Rack Structure
,Light Gauge Pipe Rack Structure
,ODM light gauge steel frame construction
Product Description
Structural Pipe Rack Overview
The Structural Pipe Rack is an essential industrial component designed for supporting piping systems, cable trays, and equipment. Featuring a modular structure type, it offers flexibility, easy assembly, and scalability for various industrial applications. The modular design enables quick installation and future expansion, making it ideal for industries requiring adaptable and efficient pipe support systems.
Key Features
- Product Name: Pipe Rack Structure
- Compliance with Standards: GB, CE, AISC, JIS, CWB
- Finish: Hot-dip Galvanized for enhanced corrosion resistance
- Raw Steel Material Options: Q235B, Q355B, ASTM A36, ASTM572
- Machining Processes: Drilling and Milling for Precise Fittings
- Model: Customized as requested to meet specific requirements
- Robust Structural Pipe Rack ensuring durability and reliability
- High-quality construction suitable for various industrial applications
- Engineered for optimal support and safety
Technical Specifications
| Parameter | Specification |
|---|---|
| Weather Resistance | Yes |
| Port | Chongqing, China |
| Raw Steel Material | Q235B, Q355B, ASTM A36, ASTM572 |
| Structure Type | Modular Pipe Rack |
| Color | Optional |
| Production Capacity | 12500T Per Month |
| Finish | Hot-dip Galvanized |
| Cost | Affordable |
| Standard | GB, CE, AISC, JIS, CWB |
| Model | As Requested |
Applications
The Wenchen Structural Pipe Rack provides robust and reliable framework solutions for various industrial and commercial applications. It is commonly used in large-scale industrial plants including oil refineries, chemical processing facilities, and power generation stations. The pipe rack's H section columns and beams provide superior strength and stability, making them well-suited to withstand harsh environmental conditions.
Additional applications include construction projects with complex piping layouts such as water treatment plants, manufacturing facilities, food processing units, and urban infrastructure projects supporting utility piping and conduits in power substations, transportation hubs, and commercial buildings.
Customization Options
Wenchen offers high-quality Structural Pipe Rack products with comprehensive customization options to meet specific project requirements. Our structures are designed and manufactured following international standards including GB, CE, AISC, JIS, and CWB, ensuring reliable performance and safety. Choose Wenchen for tailored solutions that fit your unique specifications, backed by professional service and competitive pricing.
Support and Services
Our Pipe Rack Structure product is supported by a dedicated technical support team committed to ensuring optimal performance and customer satisfaction. We provide comprehensive installation guidance, maintenance advice, and troubleshooting assistance to maximize the lifespan and efficiency of your pipe rack system.
Technical support services include detailed product documentation, 3D modeling assistance, structural analysis consultations, on-site support, inspection services, preventive maintenance programs, and repair services to minimize downtime and extend service life.
Packing and Shipping
Each component is securely bundled and wrapped with protective materials to prevent damage during handling and shipping. Packaging includes wooden crates or reinforced steel frames depending on order specifications. All shipments are accompanied by detailed packing lists and handling instructions, with tracking information provided for every shipment to ensure timely delivery in excellent condition.
Frequently Asked Questions
Q1: What is the Pipe Rack Structure made of?
A1: The Pipe Rack Structure is made from high-quality steel materials to ensure durability and strength.
Q2: Which brand manufactures the Pipe Rack Structure?
A2: The Pipe Rack Structure is manufactured by Wenchen, a trusted brand known for its reliable industrial products.
Q3: Where is the Pipe Rack Structure produced?
A3: The Pipe Rack Structure is produced in China, adhering to strict quality control standards.
Q4: What applications is the Pipe Rack Structure suitable for?
A4: It is suitable for supporting pipes in industrial plants, refineries, power plants, and chemical processing facilities.
Q5: Can the Pipe Rack Structure be customized?
A5: Yes, Wenchen offers customization options to meet specific project requirements regarding size, load capacity, and design.

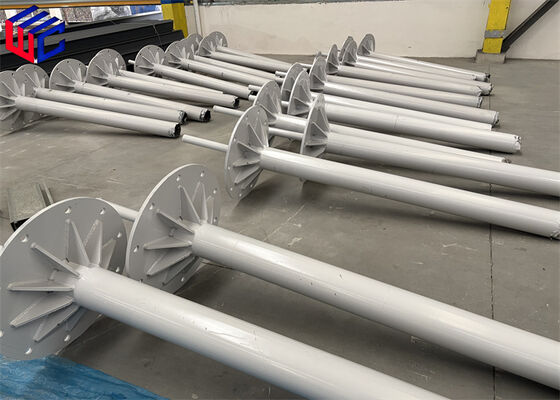

Product Gallery
